UL3367

UL 3367  Flat Cable

说   明                                             DESCRIPTION

UL型号：3367                                   UL STYLE:3367
额定温度：-60°C～+200°C                 Rate temperature : -60°C～+200°C

额定电压：300V                                Rate voltage : 300V

绝    缘：硅橡胶                                Insulation：Silicone

导体材质：26～16AWG镀锡铜线       Conductor material：26 to 16 AWG Tinned copper

外径容差：±0.10mm                         O.D.Allowance:：±0.10mm

颜    色：黑 棕 红 橙 黄 绿 蓝 紫 灰 白     Aviable：Black Brown Red Orange Yellow Green   黄绿等                                      Blue Violet Gray White  Green/Yellow，etc.

性   能                                    ELECTRONIC CHARACTERISTICS

耐高温、低温、酸、碱、油、耐燃烧、老化、   High temperature resistance、low temperature

耐候性、防雾以及线的柔软性、电绝缘性、     resistance、anti-acid and alkali、fire and aging

满足UL758、UL1581、RoHs要求              resistance、the inoxid-izability、resistance of humidity、

                                           the fine electric insulation and flexible performance

                                           UL758＆UL1581 RoHs compliance.

应用                                      APPLICATION

适用于家用电器、照明灯具、电子设备、温    Apply to Household appliance、lllumination＆Lighting

度伟感器、航天、航空、军用产品、冶金化    ＆Headlamp、electric machines、tempurature sensor

工、汽车船舶、电力安装等连接线            、Military series、Metallurgy Chemical series、

                                          Motor cars＆Ships Electrical Installation.

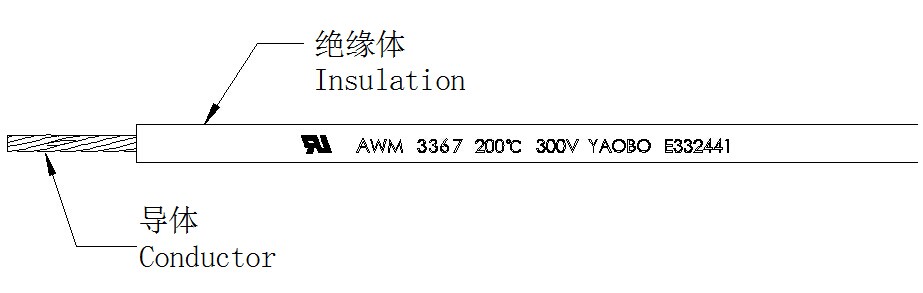

构造  Construction

参数  Construction Table
