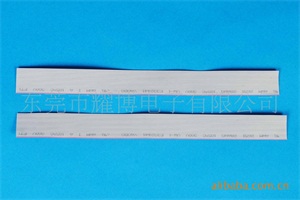

UL2651 Flat Cable
说 明 UL&CSA GRADE
UL型号：2651 UL STYLE:2651
额定温度：105°C Rate temperature : 105°C
额定电压：300V Insulation：PVC
绝 缘：聚氯乙烯（PVC） Rate voltage : 300V
阻燃等级：VW-1及CSAFT1、FT2 Flame test : VW-1
电气性能
耐 电 压：2500V
绝缘电阻：100 M-km
电 容：44pF/m
电 感：1.45μH/m
特性阻抗：105
导通时间：4.2 ns/m
ELECTRONIC CHARACTERISTICS
Spark test : 2500V
Insulation resistance : Minimum 100 M-km
Capacity : 44pF/m
Inductance : 1.45μH/m
Character istic Impedance : 105
Propagation delay time : 4.2 ns/m
应用
适用于一般电器、电脑内部连线
USAGE
Used for most electronic equipments which require higher current as Jumper wire or shortdistance connection

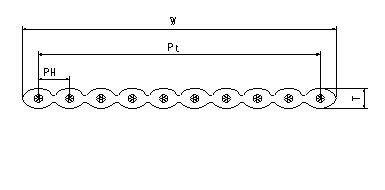

构造 Construction
参数 Construction Table
|
NO.of |
Size of conductor |
Thickness |
Width |
INSU.RESISTANCE |
||
|
芯线数 |
AWG |
Composition |
mm±0.05 |
Pith=1.0 |
Pith=1.27 |
Ω/KM(20°C) |
|
2P |
30 |
7/0.102 |
0.82 |
2 |
2.54 |
377 |
|
4P |
30 |
7/0.102 |
0.82 |
4 |
5.08 |
377 |
|
5P |
30 |
7/0.102 |
0.82 |
5 |
6.35 |
377 |
|
6P |
30 |
7/0.102 |
0.82 |
6 |
7.62 |
377 |
|
7P |
30 |
7/0.102 |
0.82 |
7 |
8.89 |
377 |
|
8P |
30 |
7/0.102 |
0.82 |
8 |
10.16 |
377 |
|
9P |
30 |
7/0.102 |
0.82 |
9 |
11.43 |
377 |
|
10P |
30 |
7/0.102 |
0.82 |
10 |
12.7 |
377 |
|
12P |
30 |
7/0.102 |
0.82 |
12 |
15.24 |
377 |
|
14P |
30 |
7/0.102 |
0.82 |
14 |
17.78 |
377 |
|
16P |
30 |
7/0.102 |
0.82 |
16 |
20.32 |
377 |
|
20P |
30 |
7/0.102 |
0.82 |
20 |
25.4 |
377 |
|
24P |
30 |
7/0.102 |
0.82 |
24 |
30.48 |
377 |
|
26P |
30 |
7/0.102 |
0.82 |
26 |
33.02 |
377 |
|
30P |
30
28 26 |
7/0.102
/0.127 7/0.160 |
0.82
0.90 1.0 |
30 |
38.1 |
377
237 149 |
|
34P |
30 |
7/0.102 |
0.82 |
34 |
43.18 |
377 |
|
40P |
30 |
7/0.102 |
0.82 |
40 |
50.8 |
377 |
|
50P |
30 |
7/0.102 |
0.82 |
50 |
63.5 |
377 |
|
60P |
30 |
7/0.102 |
0.82 |
60 |
76.2 |
377 |
|
64P |
30 |
7/0.102 |
0.82 |
64 |
81.28 |
377 |
